Sleepers

Description

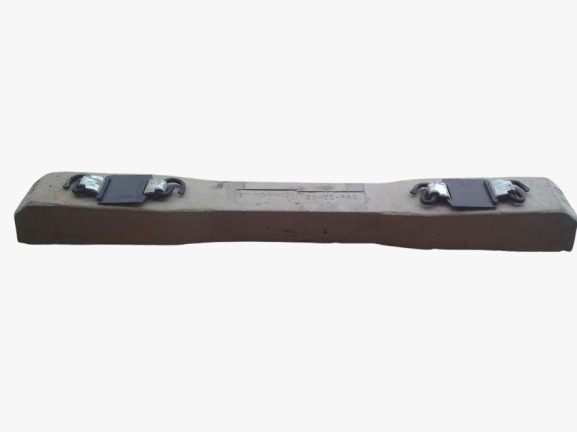

Concrete Sleepers

ZMS Concrete Sleepers provide a strong and durable foundation for underground mining and industrial railway systems. Manufactured in different sizes to accommodate project-specific axle loads, the sleepers support secure rail alignment, consistent track gauge and reliable load distribution.

The range includes 5-tonne and 10-tonne sleeper options manufactured from 60MPa concrete and reinforced with high-tensile prestressing wires for dependable performance in demanding rail environments.

Key features

• Manufactured from high-strength 60MPa concrete
• Reinforced with high-tensile prestressing wires
• Available in 5-tonne and 10-tonne configurations
• Integrated cast-in shoulders for consistent track gauge
• Elastic rail fastening system for secure rail alignment
• Mineclip clamping force of up to 800kg per clip
• Built-in 1:20 rail-seat inclination
• High sleeper mass improves track stability
• Gauge-widening capability helps minimise wheel and rail wear
• Designed for reusability and an extended working life
• Manufactured under an ISO 9001:2000-certified quality-management system

Available variants

5-tonne concrete sleeper

Designed for compatible mining and industrial railway applications where the selected sleeper, rail profile, fastening system and axle load meet the project specification.

• Approximately 40 sleepers per pallet
• Elastic fastening system
• Integrated cast-in shoulders
• Suitable for project-specific underground rail requirements

10-tonne concrete sleeper

Designed for heavier railway applications with axle loads greater than 5 tonnes and up to 10 tonnes, subject to the complete track-system design.

• Approximately 20 to 25 sleepers per pallet
• Suitable for demanding underground haulage operations
• Supports high annual material and rolling-stock throughput
• Mineclip clamping force of up to 800kg per clip

Performance

The sleepers are specified for mining haulage systems handling more than 500,000 tonnes per annum, including rolling-stock movements. The typical haulage lifespan is greater than five years when correctly selected, installed and maintained for the operating environment.

Applications

ZMS Concrete Sleepers are suitable for:

• Underground mining rail systems
• Locomotive haulage routes
• Ore and material transport systems
• Shaft-bottom railway infrastructure
• Mining rail yards and sidings
• Industrial railway applications
• Track replacement and upgrade projects

Benefits

• Improves track stability and durability
• Helps maintain accurate rail alignment and track gauge
• Provides dependable clamping force
• Reduces movement within the track structure
• Supports high-load and high-throughput haulage operations
• Offers a long service life and cost-effective reusability
• Helps reduce wear on rails and wheels

Final sleeper selection should be based on the required axle load, rail profile, track gauge, fastening system and operating conditions. Contact ZMS with your project specifications and required quantity for a tailored quotation.
